Our HY-PRO PLUS front end kits are now available with custom colors. Pick what color A-Arm kit you want and also what color Spindle kit you want separately.
This new Generation 2 version works with shocks of all kinds without having to relocate the upper shock mounts like our original design. This provides an easier installation, plus these A Arm are very strong too.
Here are the advantages of our HY-PRO PLUS front end kits:
+1.5 inches taller spindles for more ground clearance to help prevent hitting rocks.
-Improved caster angle makes it much easier to steer and makes it much more predictable in bumps.
-Each spindle is 1 lb lighter than the oem spindles because they are 4 inches shorter on the top side in comparison to stock or other aftermarket spindles.

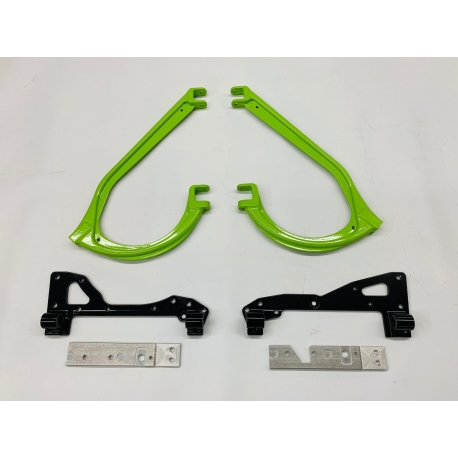

-Billet mounting brackets for the upper A arms move mouning location 4 inches lower. They are strong and come with billet bulkhead strengthening plates.
-The spindles are Forged and are extremely strong. Plus the appearance of them is simply awesome!!

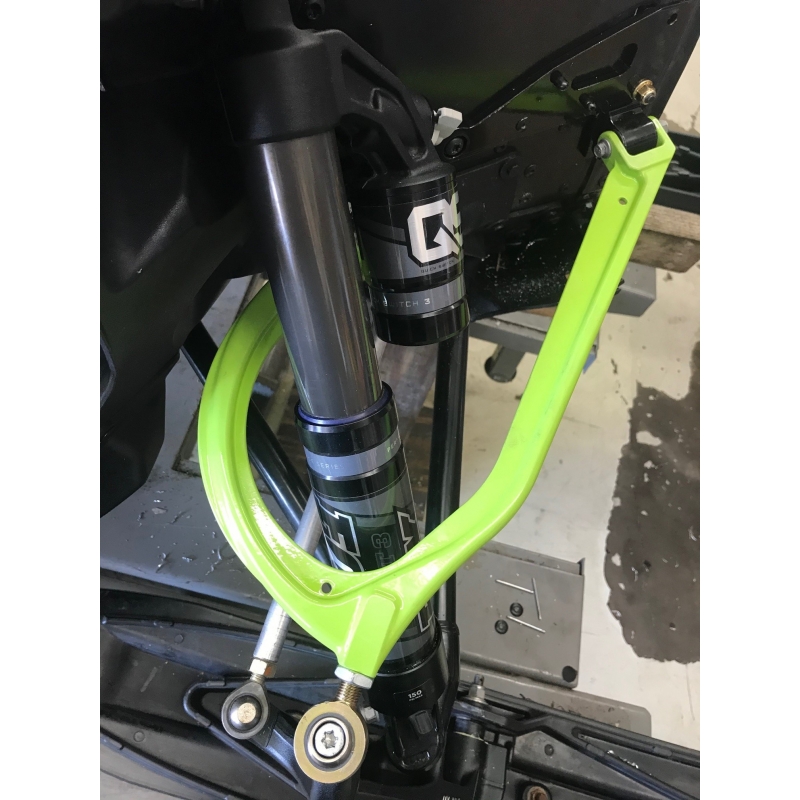

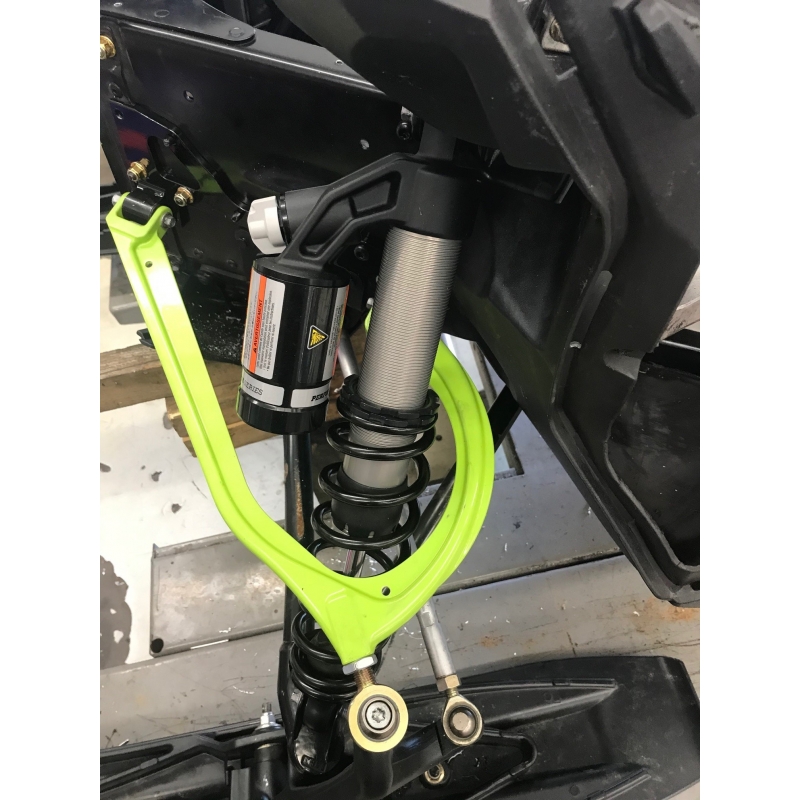

-Billet Upper Arms are the same for both sides, the work with all OEM shocks, and they are very strong.
Available in Raw Billet, or custom powder coated colors. Black, Hyper Green, Medium Green, Fire Red, Orange, Silver, White, and Yamaha Blue
If you want to upgrade a snowmobile with a wider stance to the narrower Hy-Pro front end kits, pick the optional high clearance lower A arms and our tie rod and ball joint kit.
Fit's 2016 and newer Arctic Cat mountain sleds including the BLAST, plus the Yamaha MountainMax 800 and Venom.
Can be adapted to work on 2012-2015 Arctic Cat models with the addition of the high clearance lower A arms, and our Tie rod/ball joint kit. Also can be adapted to Yamaha Viper models.
